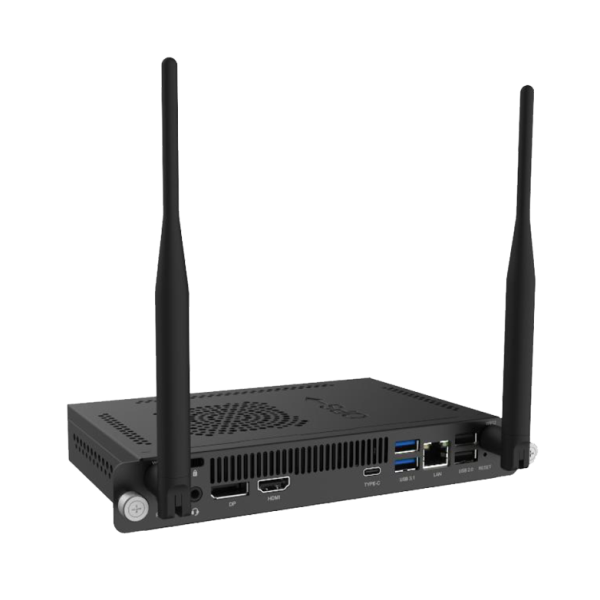

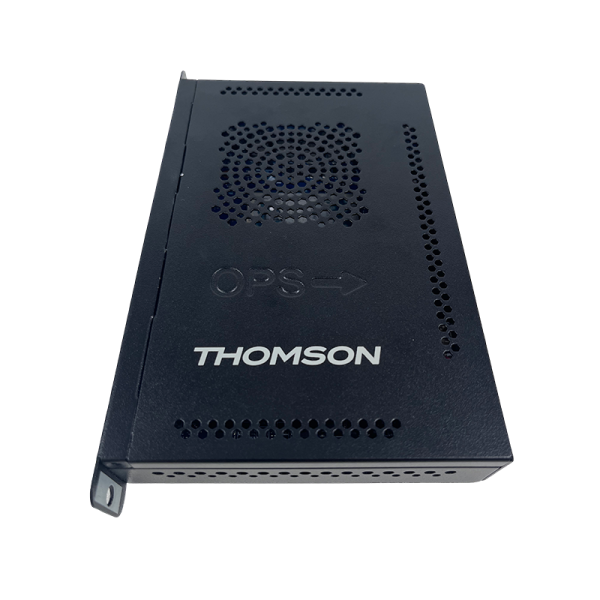

Thomson TH-OPS12 Intel Micro PC

• Based on Intel Alder Lake-P platform design
• Provide dual channel SoDIMM DDR4 slot
• Provide 1 x M.2 Key M 2280 size for NVMe/SATA SSD
• Front I/O: Provide 1 x HDMI1.4 4K30Hz, 1 x DP1.4 8K30Hz
• Front I/O: Provide 2 x USB2.0, 2 x USB3.1, 1 x Type-C
• Support WIFI6, Mini PCIe or CNVi Interface
• Support 1000M Ethernet RJ45 port
• OPS Interface: Provide 1 x HDMI2.0 4K60Hz, 1 x DP1.4
• OPS Interface: Provide 2 x USB2.0, 1 x USB3.0, 1 x TTL .
• Support Physical TPM security encryption module
• Support WIN11 OS.

Additional information

Weight 6648268 kg
CPU

Intel® Alder Lake-P Processor, Max. TDP 28W I5-12450H/I7-12650H
Chipset

Intel SOC design
BIOS

AMI UEFI BIOS
Graphics card

Intel® Iris® Xe Graphics
Multi displays

3 simultaneous 3 displays
Max

32GB
Lan IC

1 x Realtek 8111H Co-Lay Intel Ethernet Connection I226LM
Connector

1 x RJ45
Type

NVMe/SATA
Interface

1 x M.2 2280 size for NVMe/SATA SSD

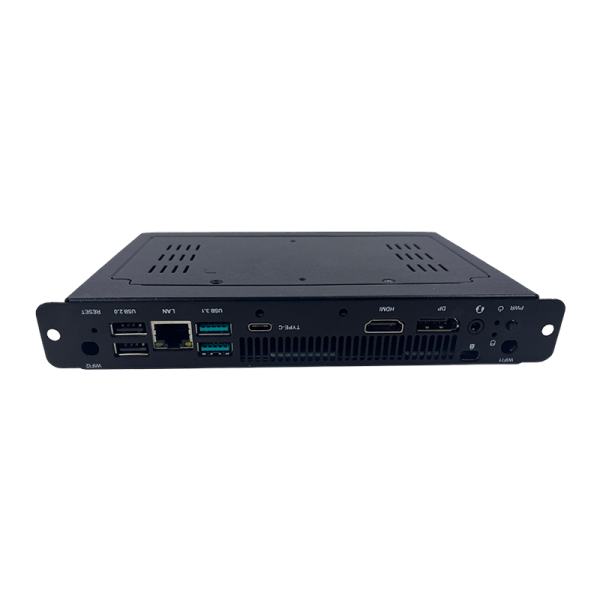

Front panel

1 x DP1.4, 1 x HDMI1.4
2 x USB 2.0, 2 x USB 3.1, 1 x Type-C(USB3.1)
1 x RJ45
1 x Line out & MIC-In two in one connector
2 x Wi-Fi/BT ANT

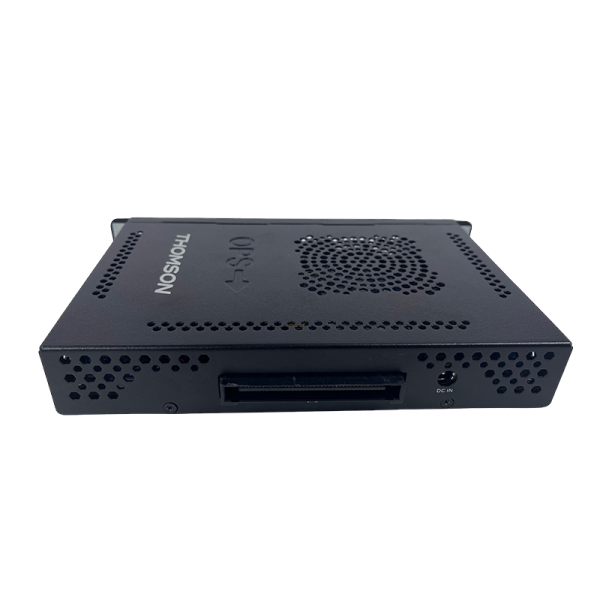

OPS Interface

1 x 2.5/5.5 DC IN JACK
1 x HDMI2.0 4K60Hz output
1 x DP1.4 5K60Hz output
2 x USB2.0, 1 x USB3.0
1 x TTL
OS Supports

Windows10/Windows11/Linux
Watchdog

Support
vPro/AMT

Support
TPM

Support
Power input

12~19V DC IN, 2.5/5.5 DC Jack & JAE 80Pin DC IN
Dimension

Comply with OPS standard module 119(L) x 180(W) x 30(H) mm
Operating Temp.

-5~45°C
Storage Temp.

-20~70°C
Operating Humidity

5%~95% non-condensing
